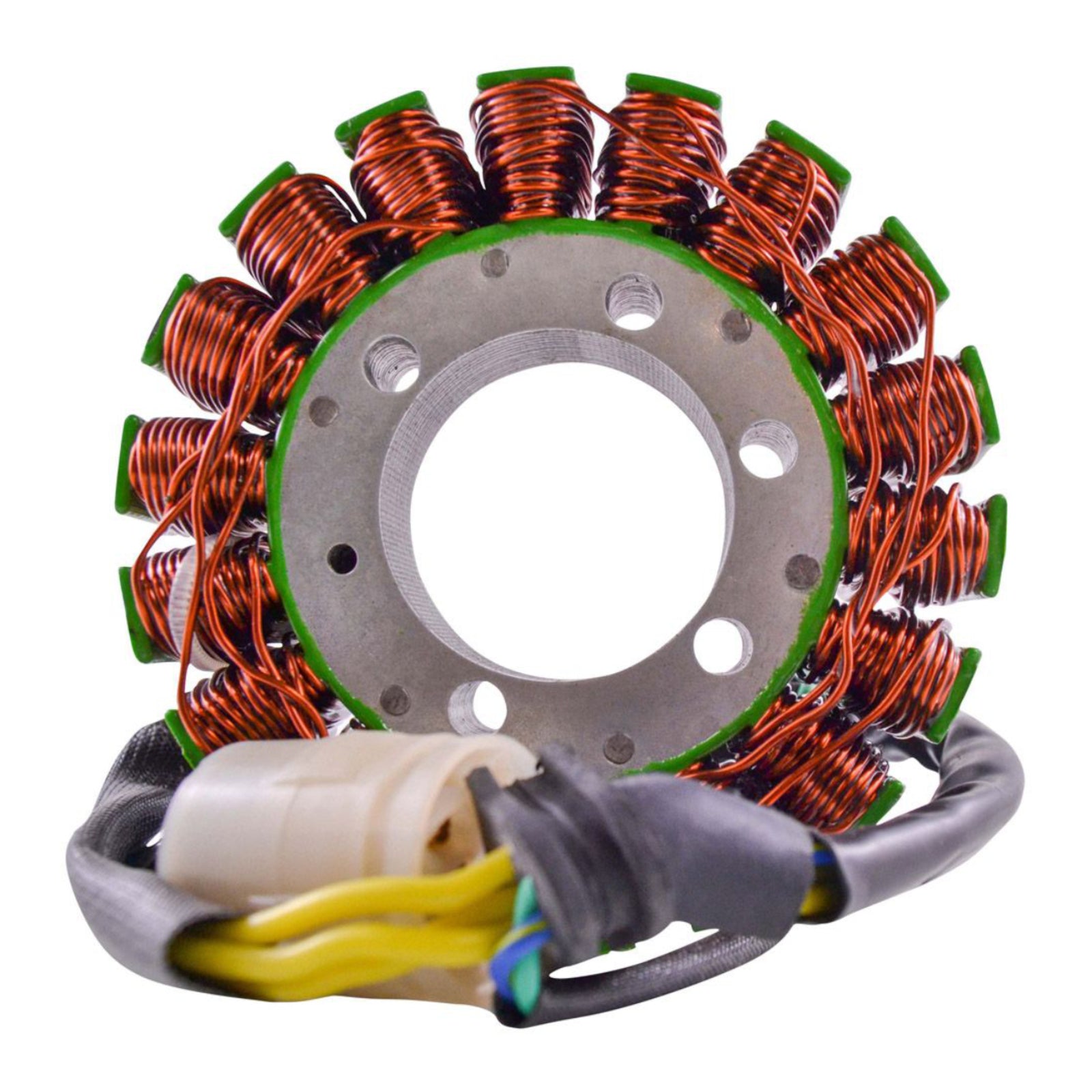

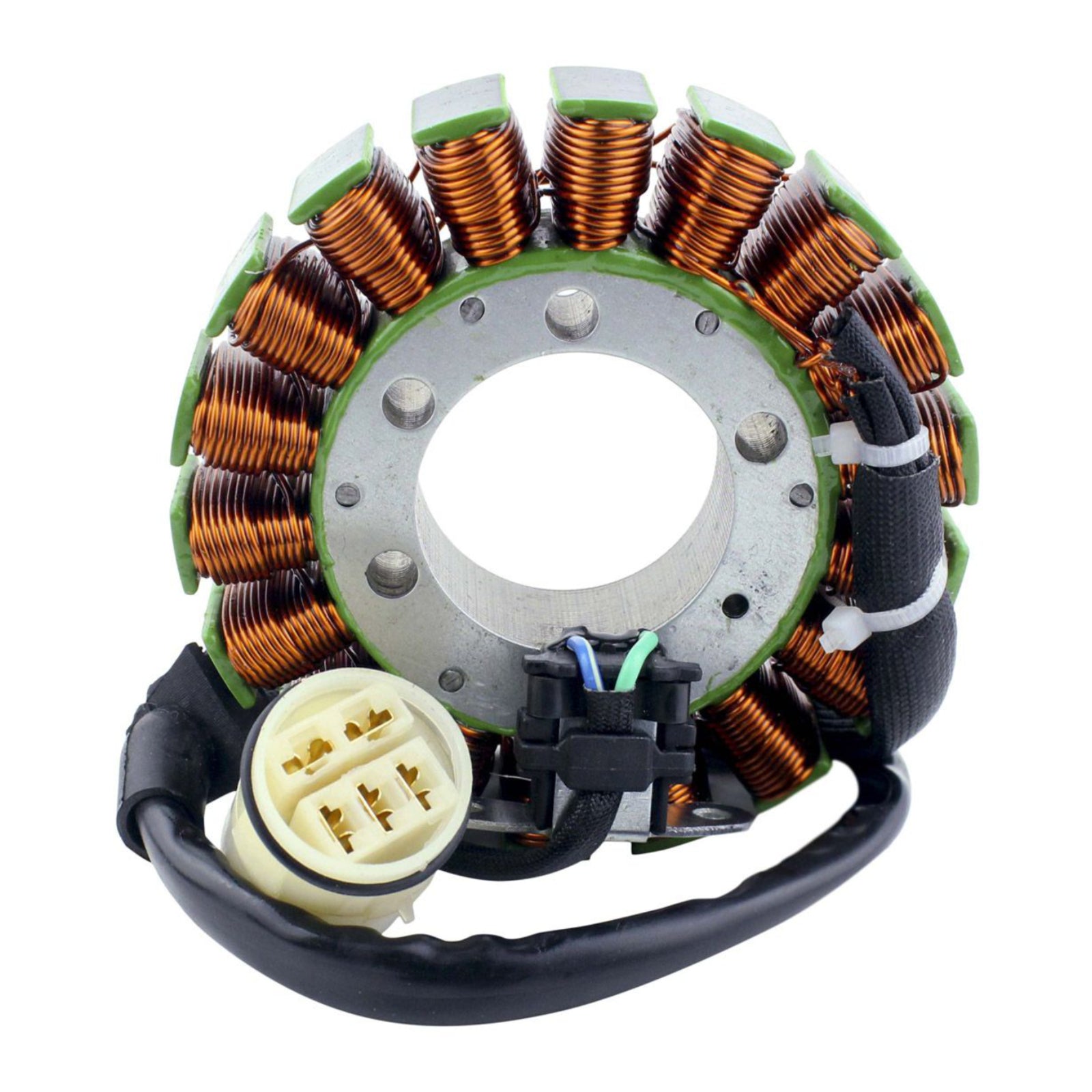

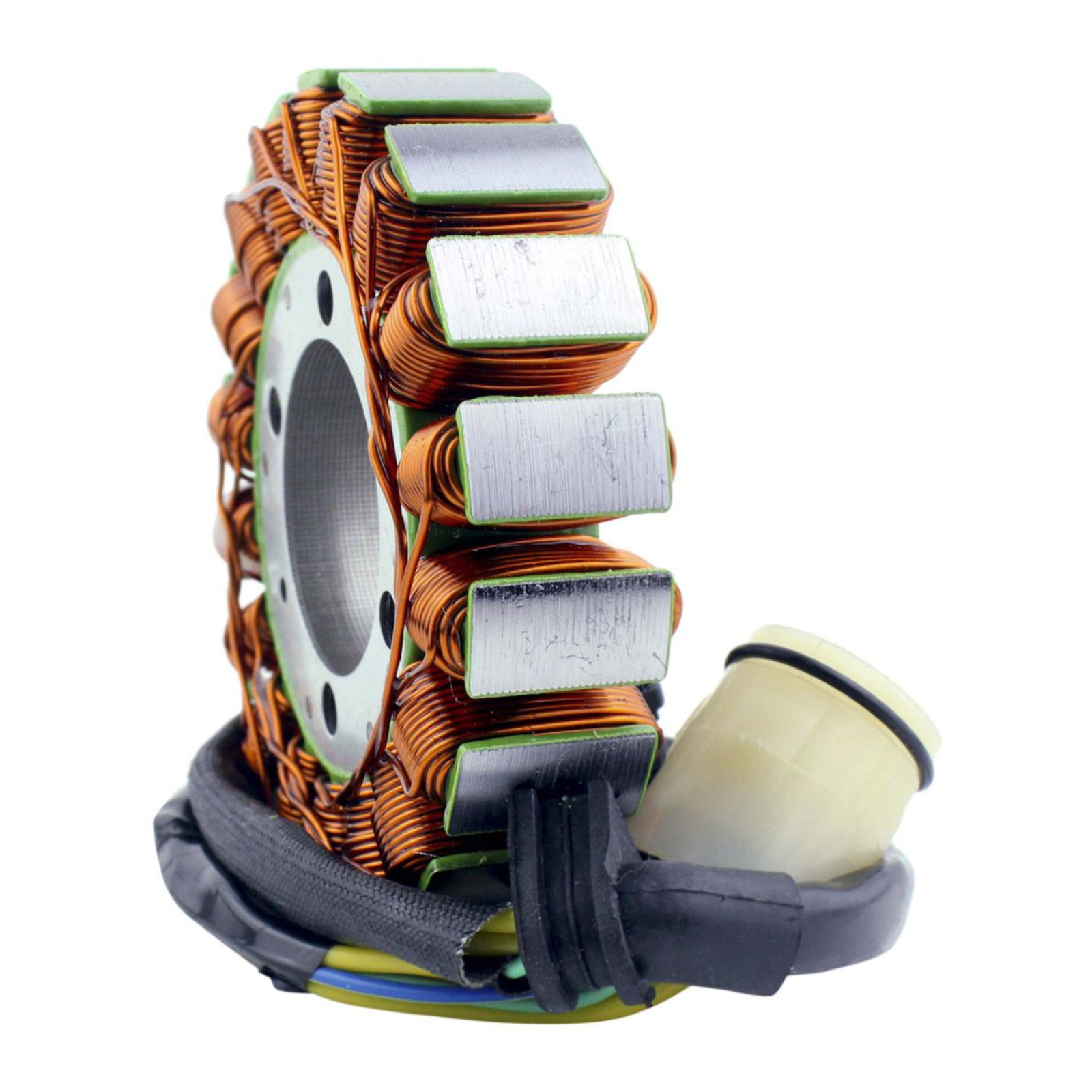

STATOR HON TRX500FE/FM/FPE/FPM 2012-2013 (RM01154)

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 41mm
• Exterior diameter: 107mm
• Thickness: 21mm
• Harness Length — stator to grommet: 130mm
• Harness Length — grommet to plug: 270mm
• Pick-up coil wire length — coil to grommet: 70mm

Other specifications:

• Number of wires: 5
• Number of plugs: 1
• Number of terminals: 5
• Wire to wire resistance:
  • Alternator: Yellow to Yellow = 0.4 ohms +-20%
  • Pick-up 1 resistance: Blue/Yellow to Green = 239 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

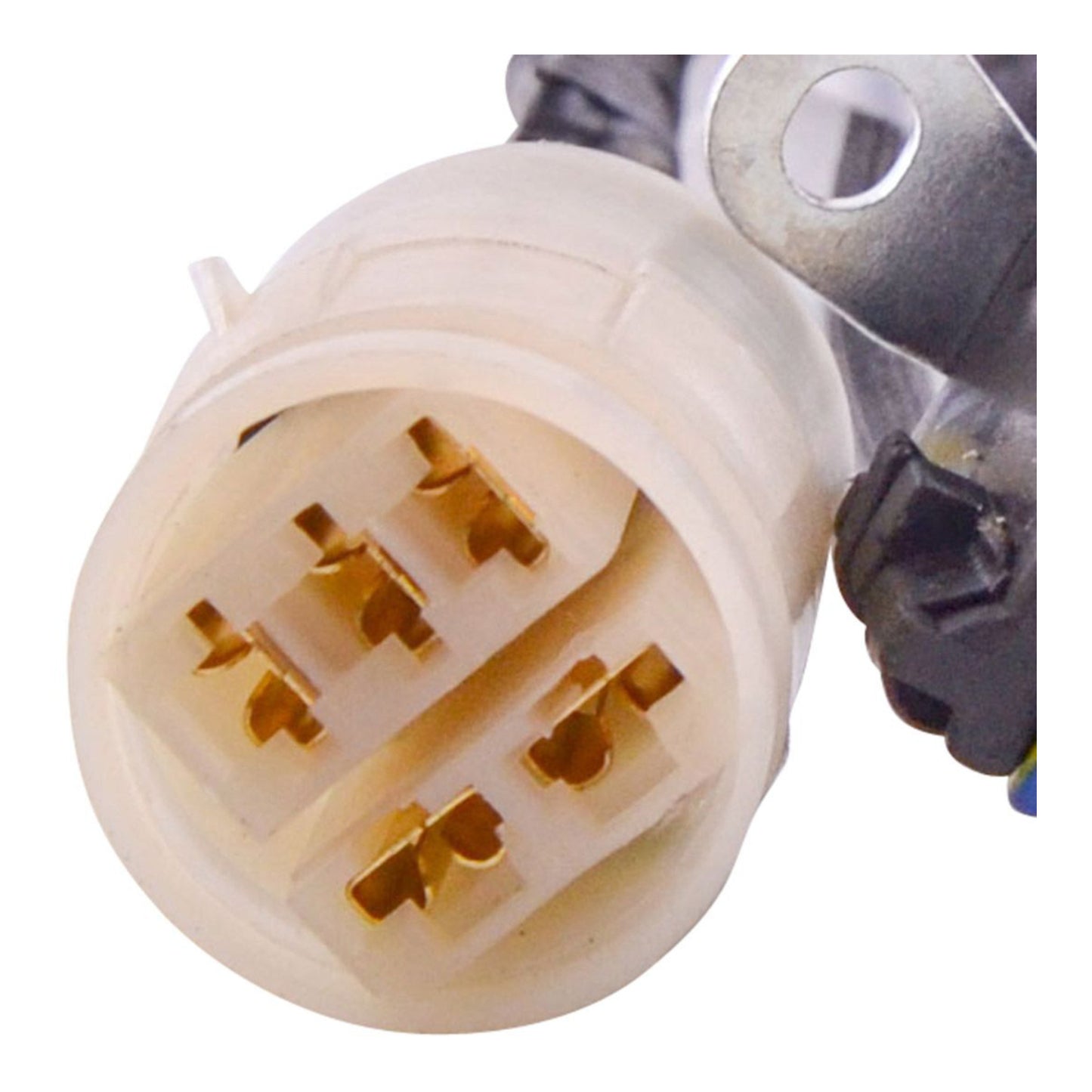

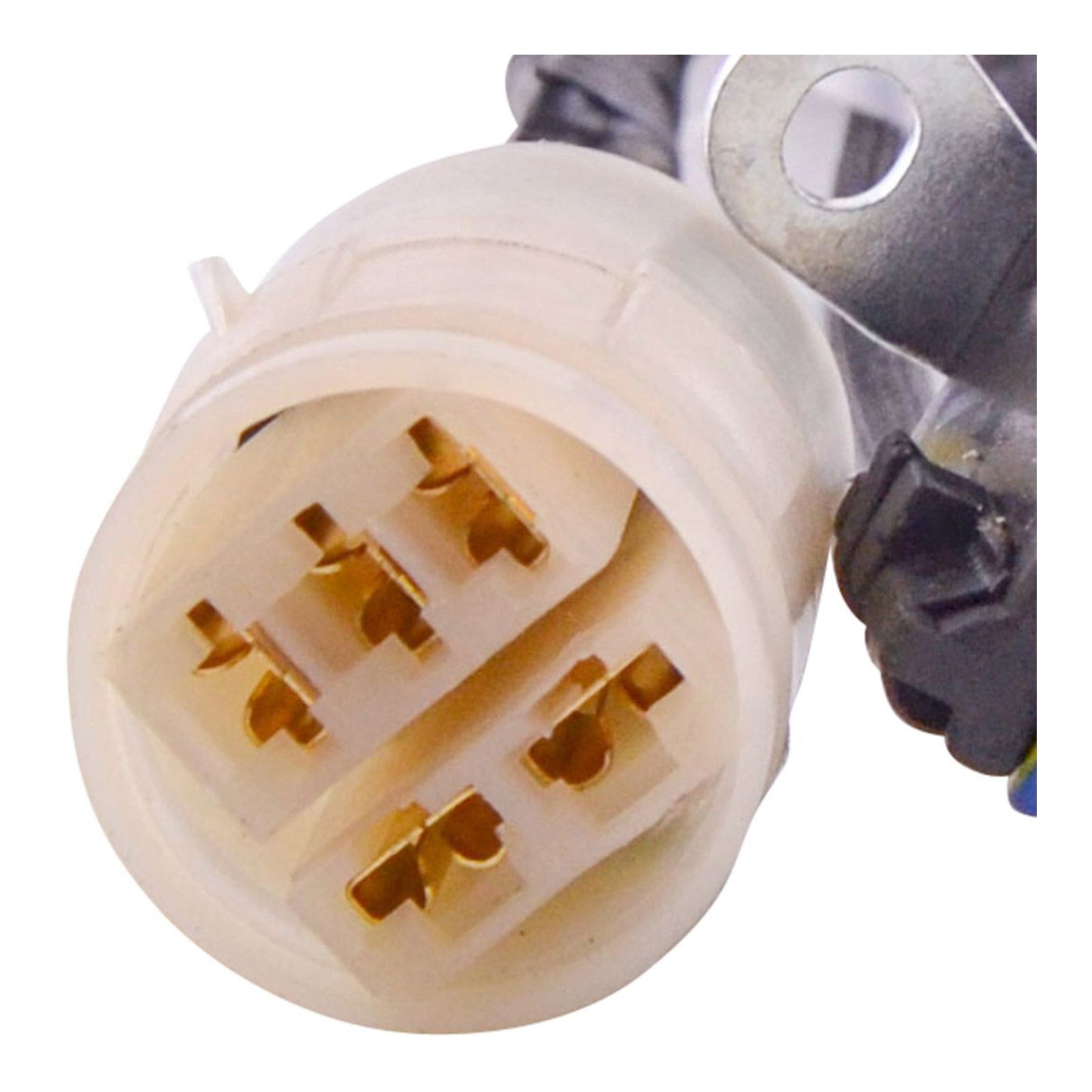

• Connector included
• Rubber grommet included
• Pick-up coil included
• All products shipped are tested
